The CB "Single-Ought" Guitar

The "Single-Ought" guitar is Chris' interpretation of the classic "Concert" (0-Size) guitars of the 1930s. Although considered a "Small" instrument, the CB Single-Ought has a voice that belies its small size, thanks to Chris' Forward-Shifted, Hand-Scalloped X-Bracing pattern, which utilizes a single tone bar in the lower bout. We think you will agree that this small-bodied guitar gives up very little to its larger-bodied siblings, possesses the sweetness of tone that these Concert-sized instruments were known for, and has the power to cut through a microphone or an acoustic jam session.

Dimensions of the CB Single-Ought are as follows (compare to our other Body Sizes here):

Body Length: 18-1/4"
Body Depth @ End Pin: 4-1/4"
Body Depth @ Neck: 3-1/2"
Upper Bout Width: 10-1/4"
Waist Width: 8-1/4"
Lower Bout Width: 13-5/8

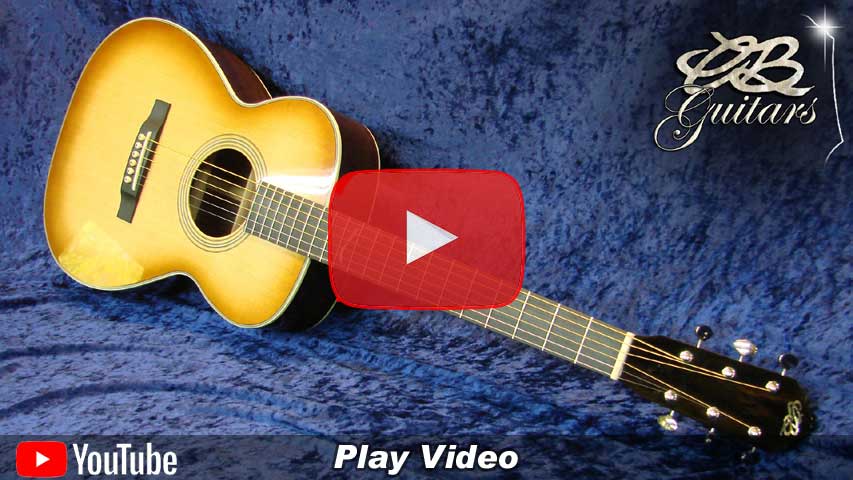

Click this link for sound samples of CB instruments.



(click pictures for larger version)

[Product Image]

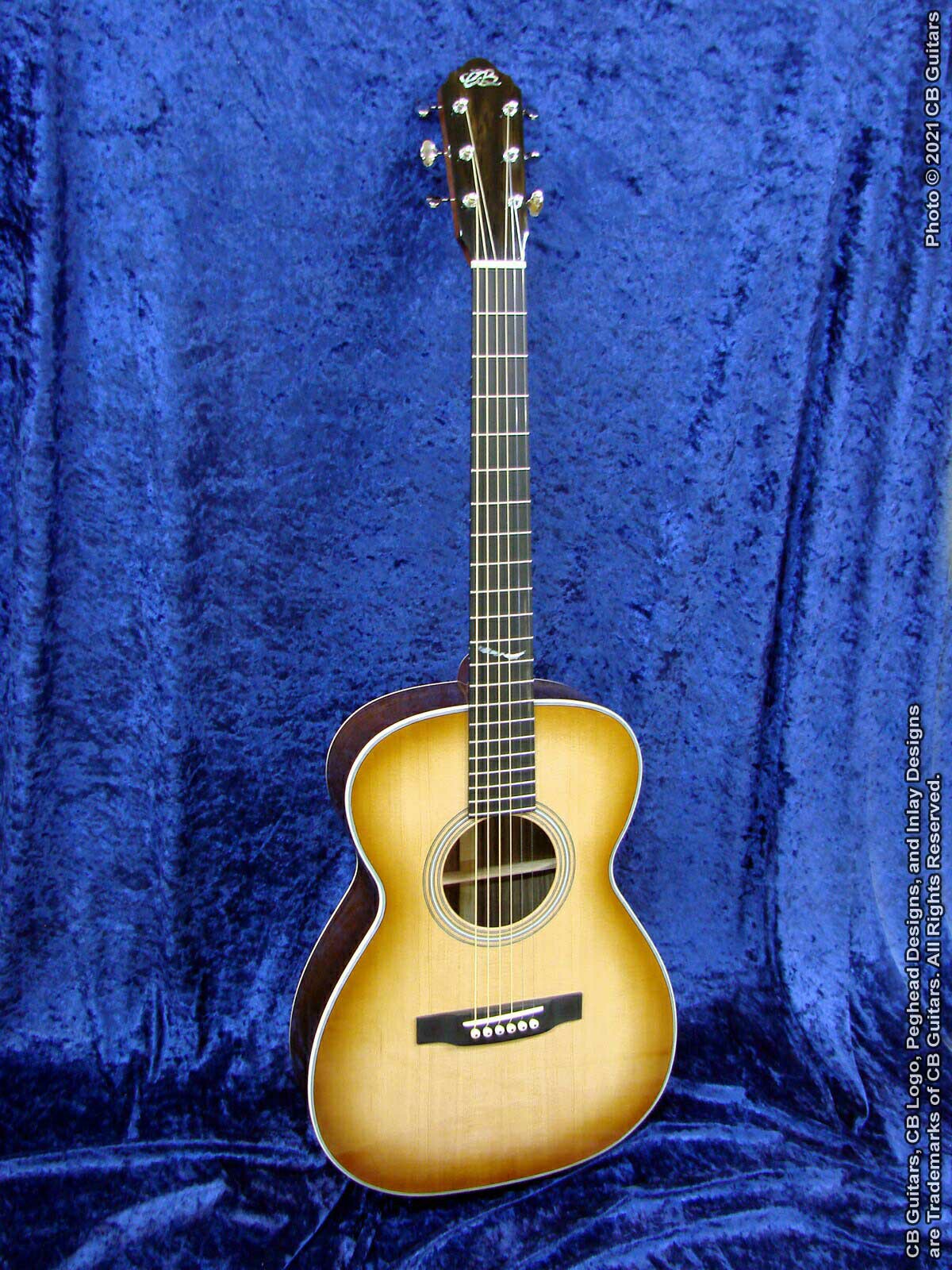

Full front view		 [Product Image]

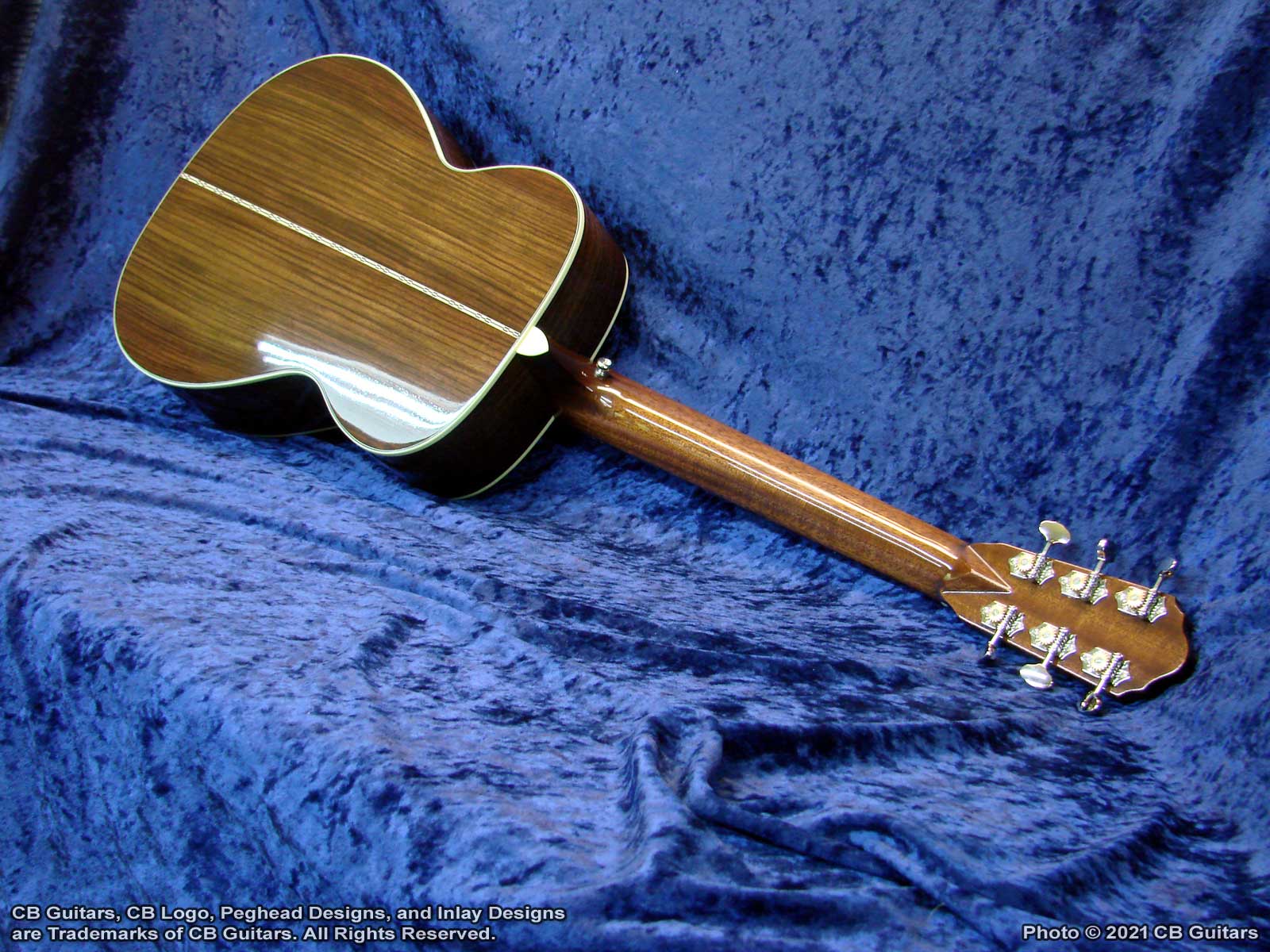

Full back view



[Product Image]

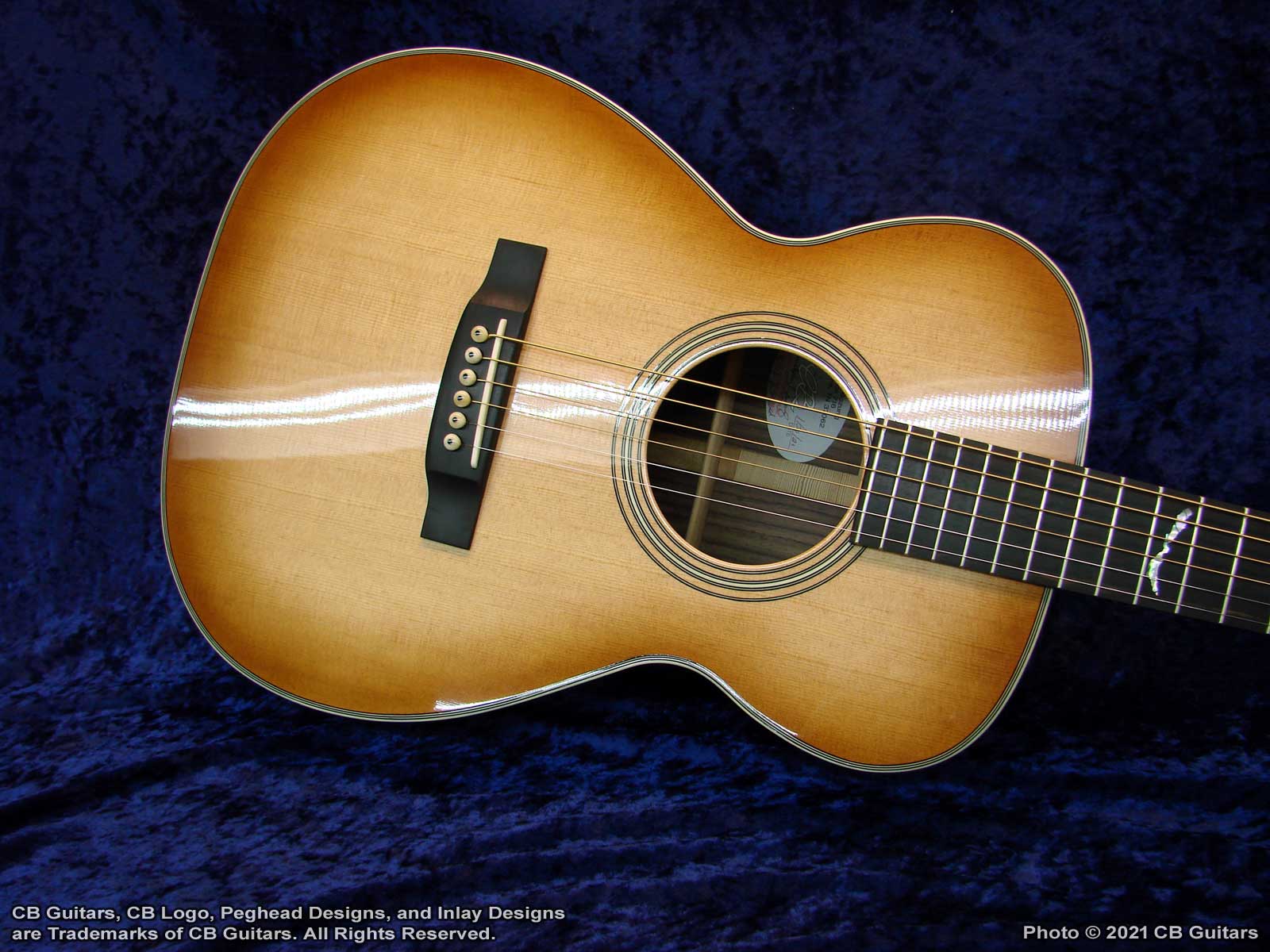

Front view of body		 [Product Image]

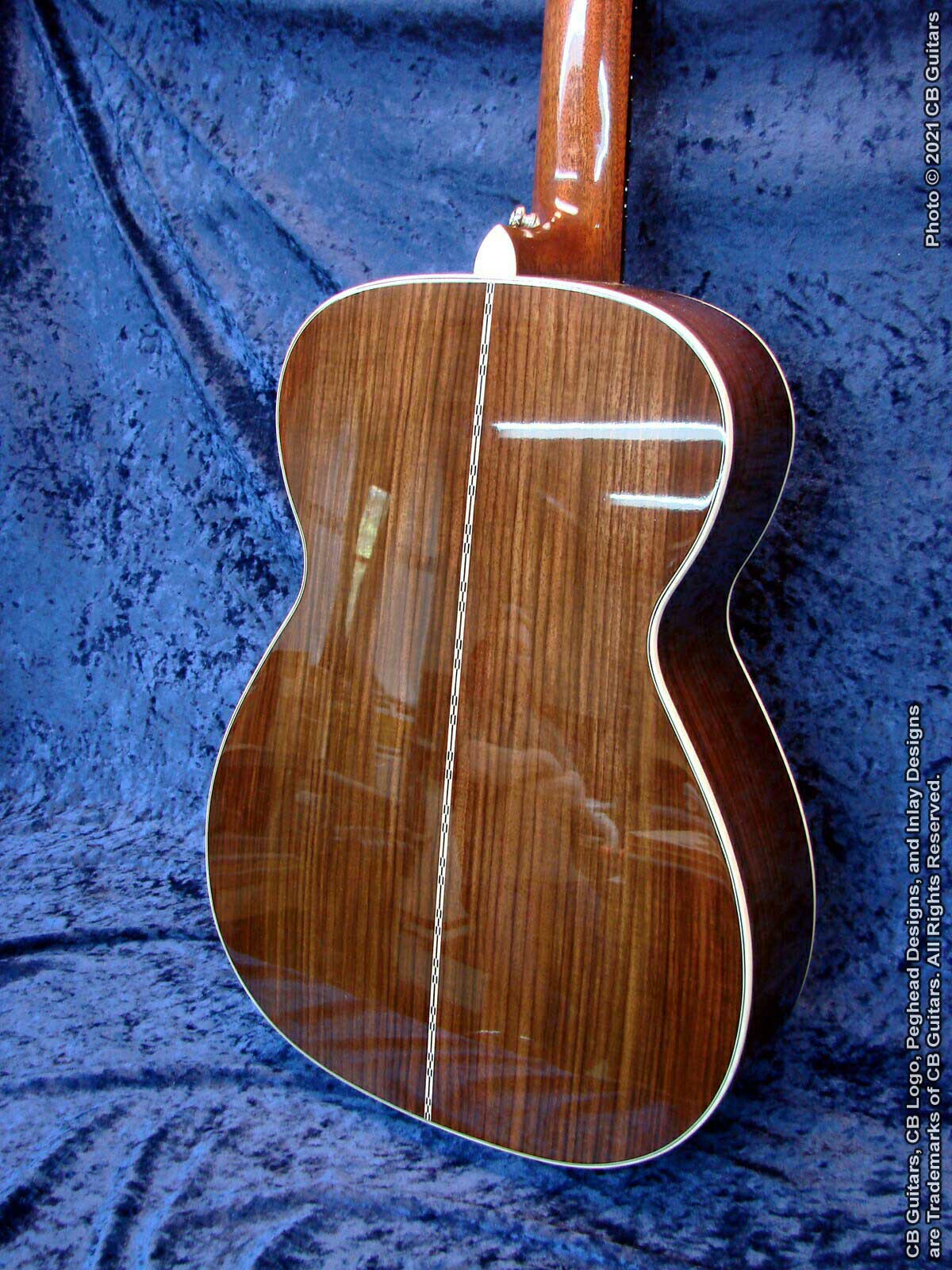

Back view of body



[Product Image]

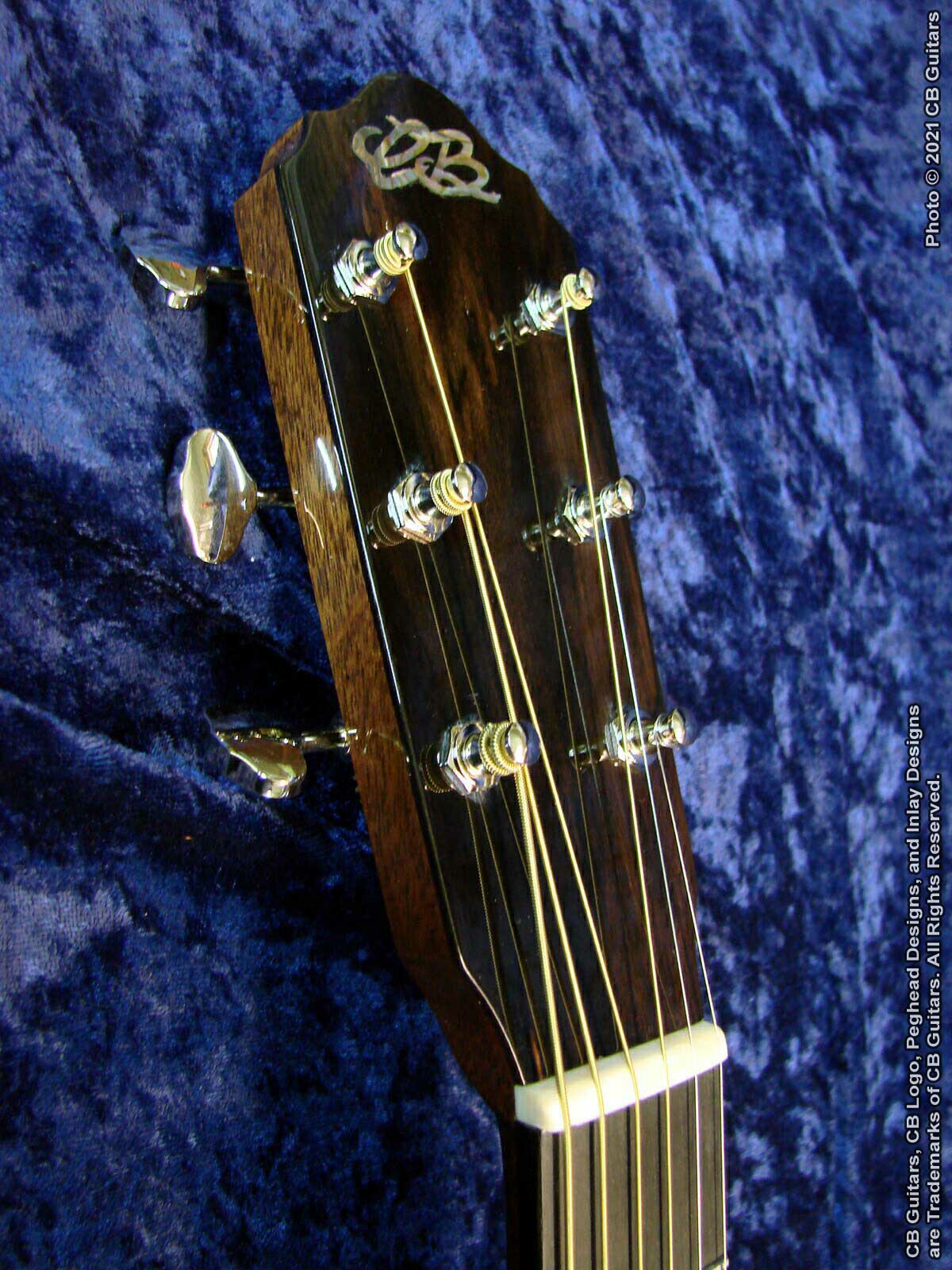

Front view of peghead		 [Product Image]
Back view of peghead



[Product Image]

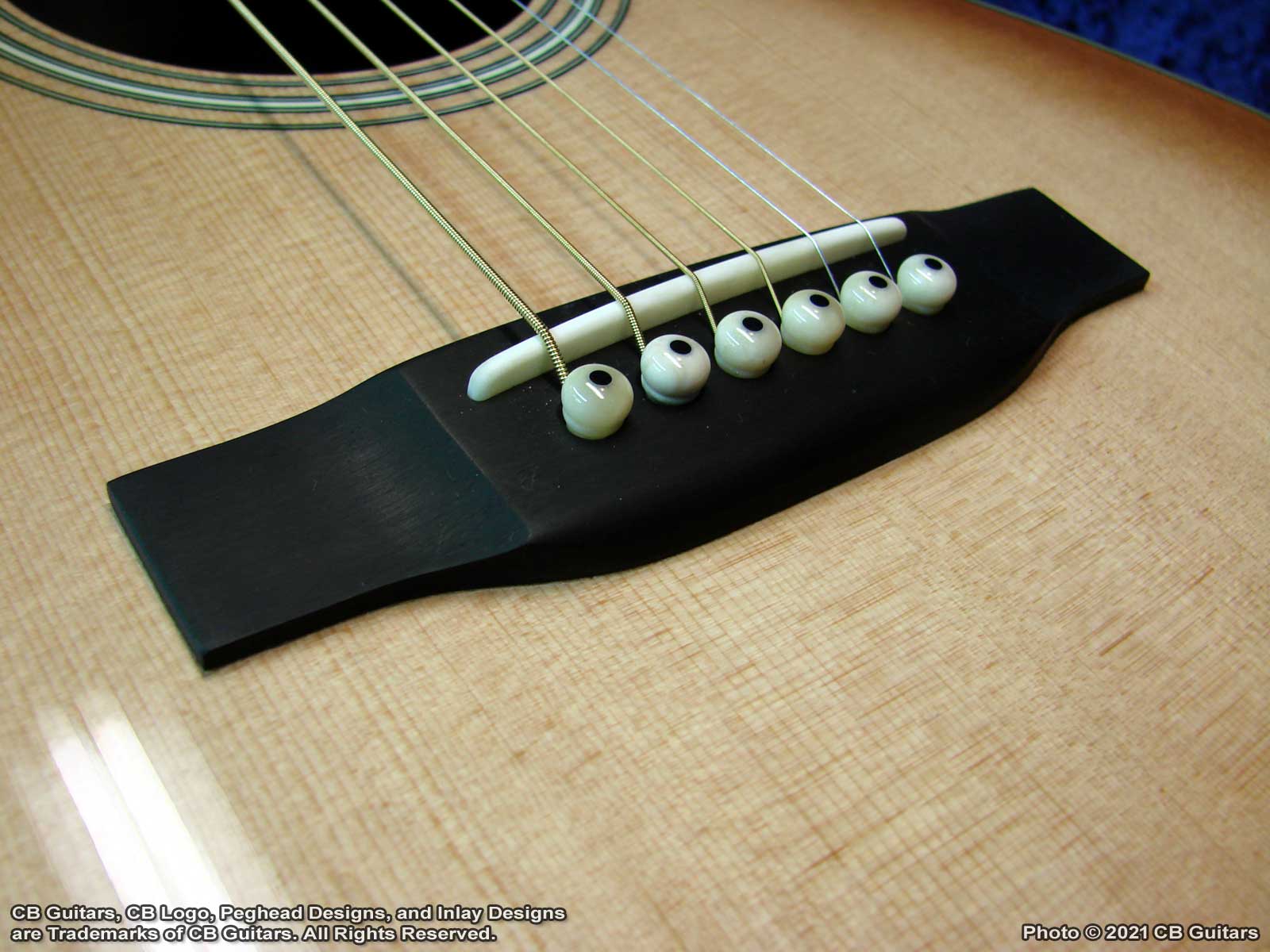

Detail view of bridge		 [Product Image]

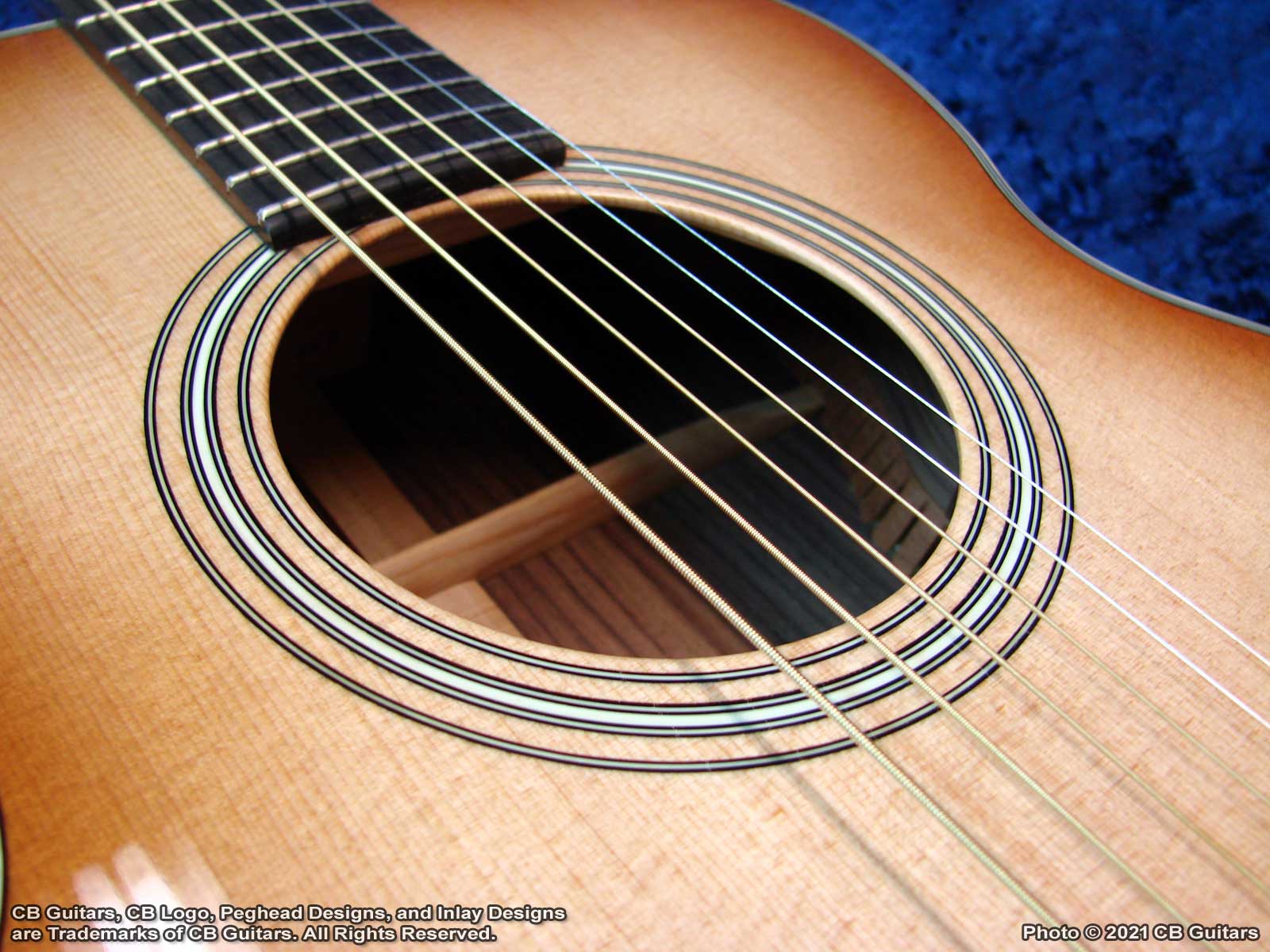

Detail view of sound hole



[Product Image]

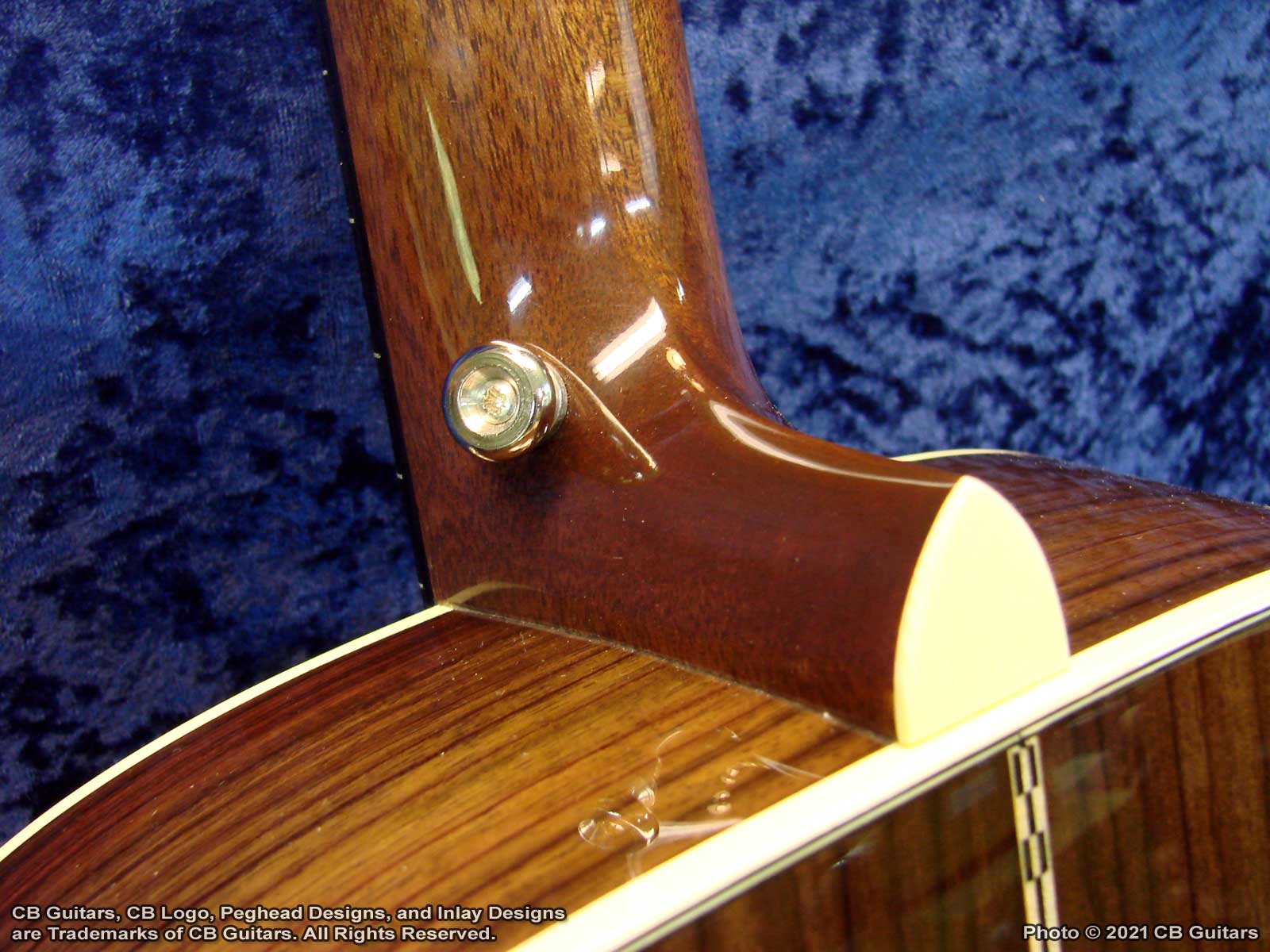

Detail view of heel cap		 [Product Image]

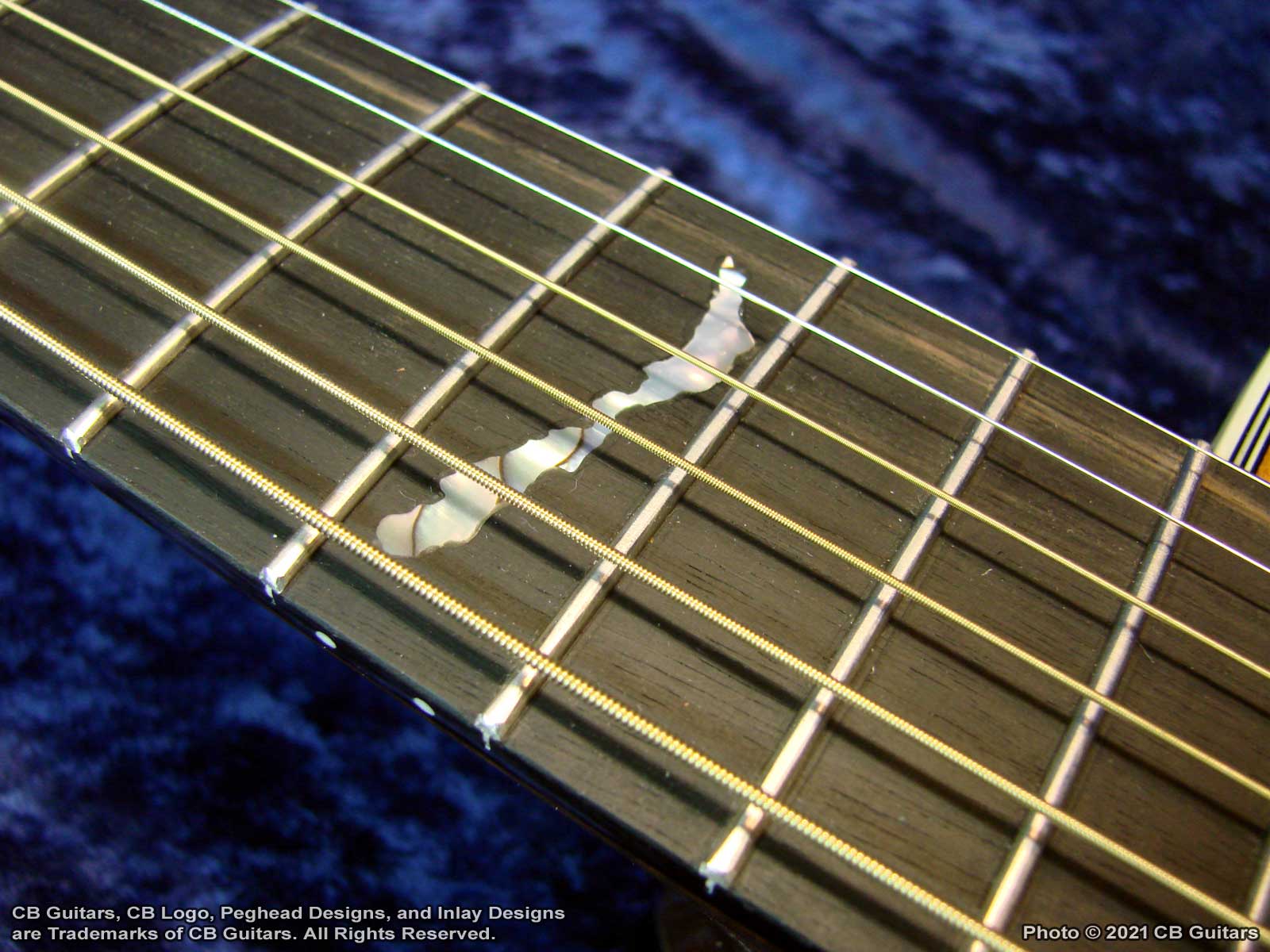

Detail view of Custom "Lake Chautauqua, New York" fretboard inlay



[Product Image]

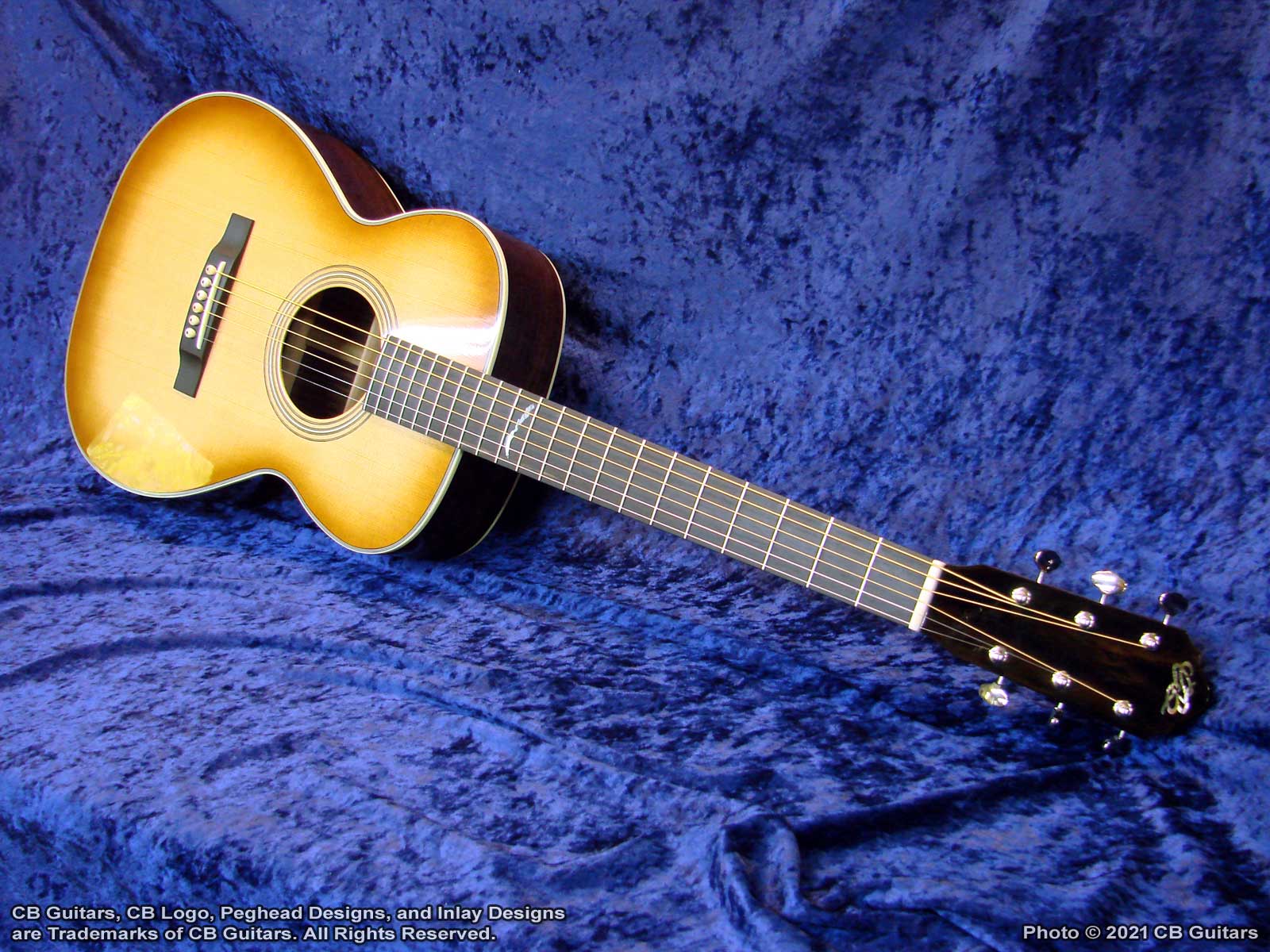

Full front view		 [Product Image]
Full back view



Features (as shown):

See Price List and Options Page for additional options.

Top: Solid Sitka spruce, tap-tuned with forward-shifted hand-scalloped braces.

Top Finish: Custom "Teaburst".

Top Binding: Multiple grained ivoroid.

Back & Sides: Solid East Indian Rosewood with "Checkerboard" back strip.

Back Binding: Multiple grained ivoroid.

Neck: Honduran Mahogany with diamond volute.

Peghead: Ebony overlay with CB logo in Mother-of-Pearl.

Tuning Machines: Nickel-plated Waverly vintage-style open-back with "butterbean" buttons.

Fretboard: Ebony with Custom "Lake Chautauqua, New York" inlay and natural bone nut.

Bridge: Ebony with natural bone saddle.

Price (as shown): $4,250.00

CB Guitars Price List

Many options are available - call or e-mail for details & price quote

All CB Instruments are backed by a Limited Lifetime Warranty against defects in material and workmanship.
