"Shallow Body" CB Vintage J in Engelmann Spruce & Figured Mahogany

Created with the full-sized (16") body width of the CB Vintage J and the shallower (4-1/8") body depth of the CB AuditoriOM, the "Shallow Body" Vintage J offers surprising volume as well a quicker response and a more "immediate" tone. The decreased size of the air chamber coupled with the full-sized sound board yields a mellow yet powerful tone in a guitar of extraordinary miking capabilities.

Click this link for sound samples of CB instruments.

(click pictures for larger version)



[Product Image]

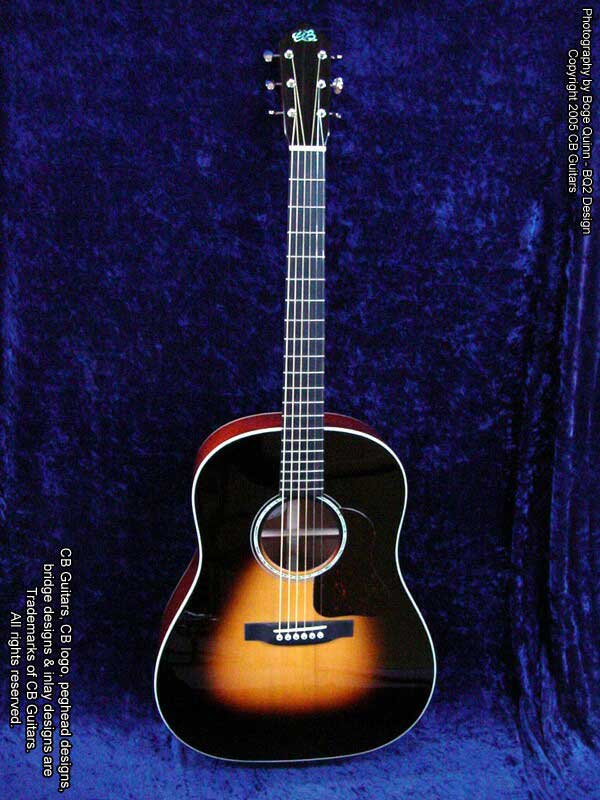

Full front view
[Product Image]

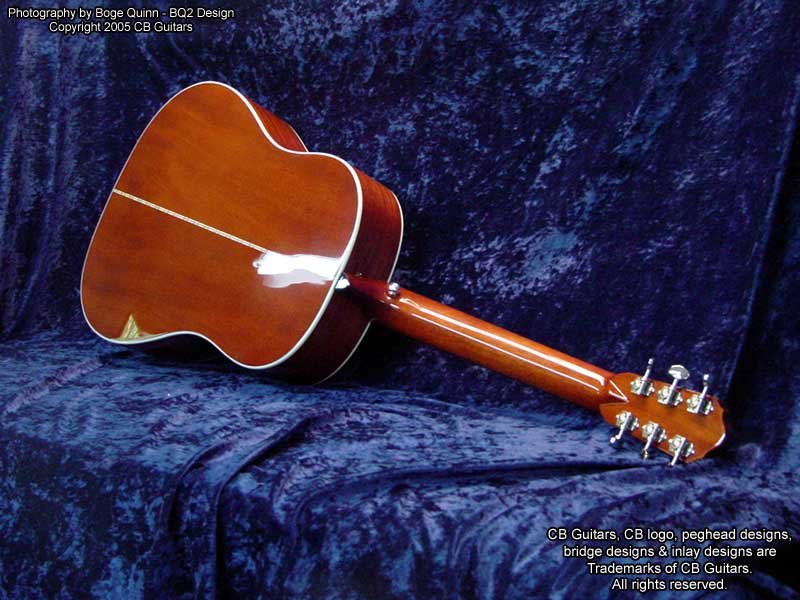

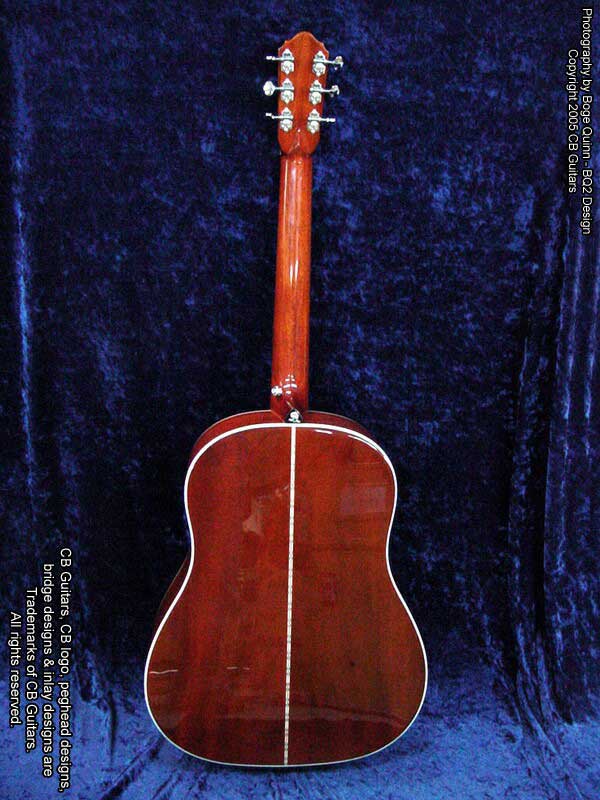

Full back view



[Product Image]
Front view of body
[Product Image]

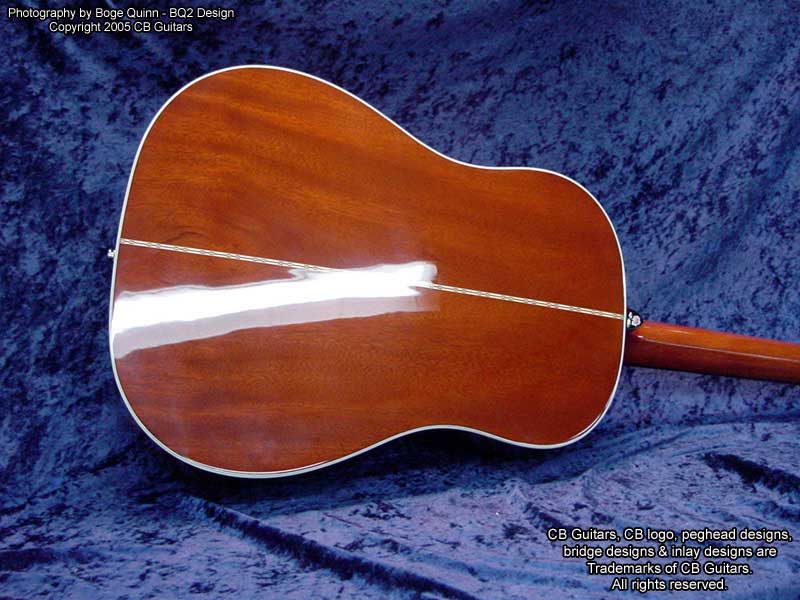

Rear view of body



[Product Image]

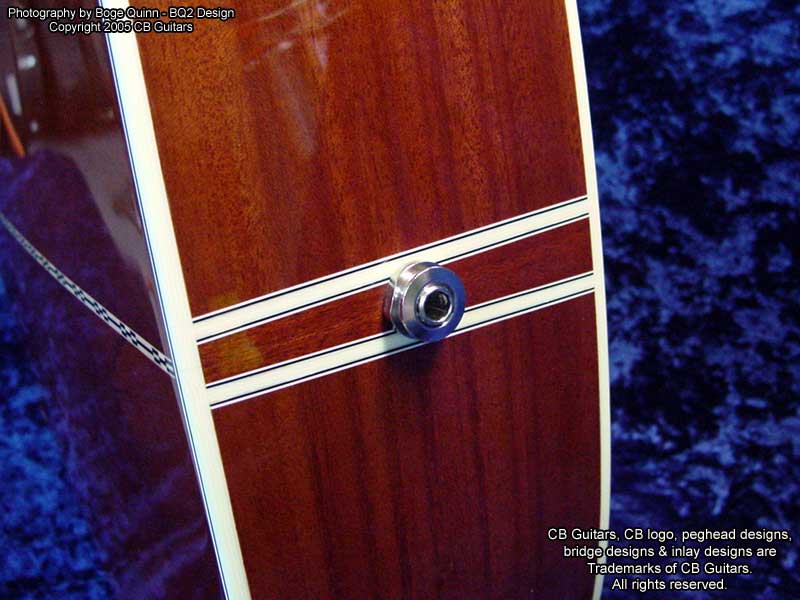

Detail view of end pin
[Product Image]

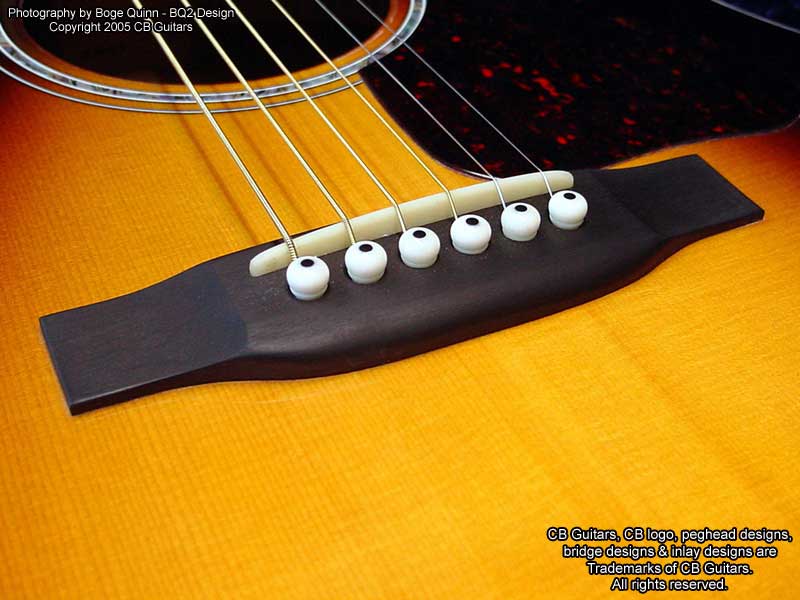

Detail view of bridge



[Product Image]

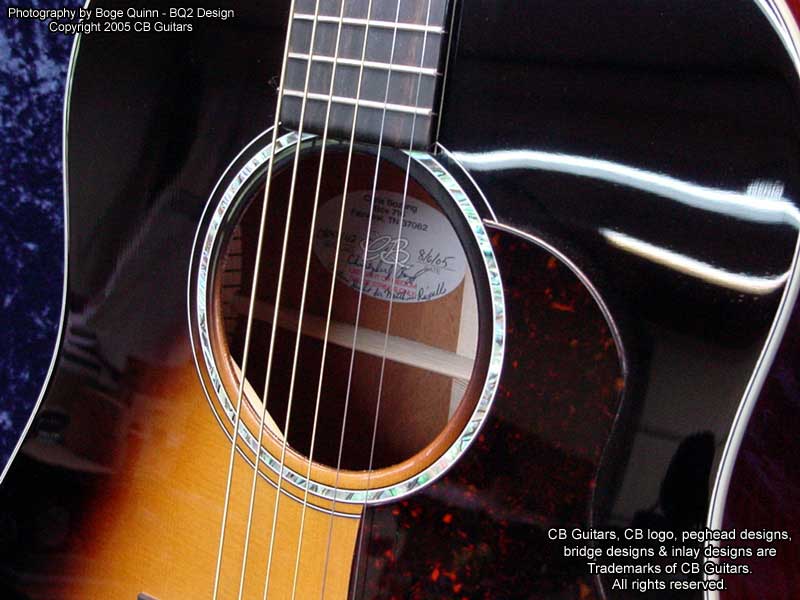

Detail view of soundhole
[Product Image]

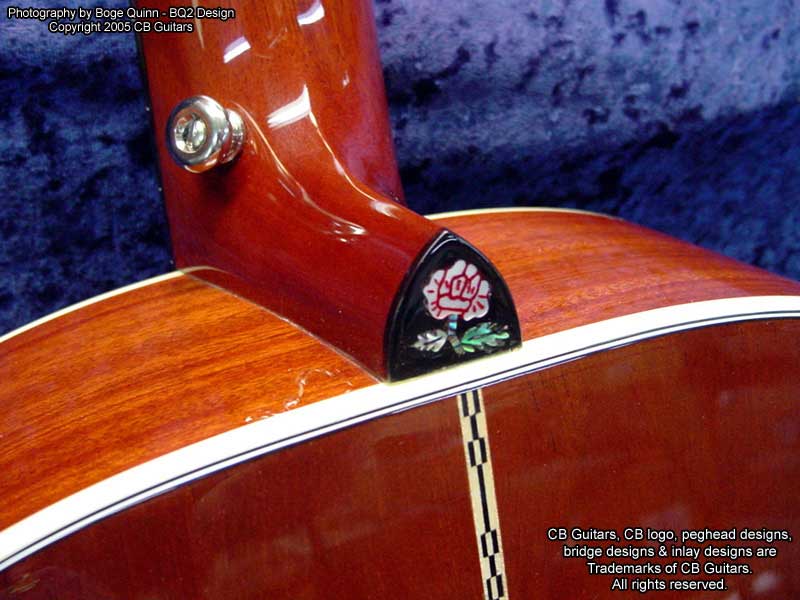

Detail view of heel cap



[Product Image]

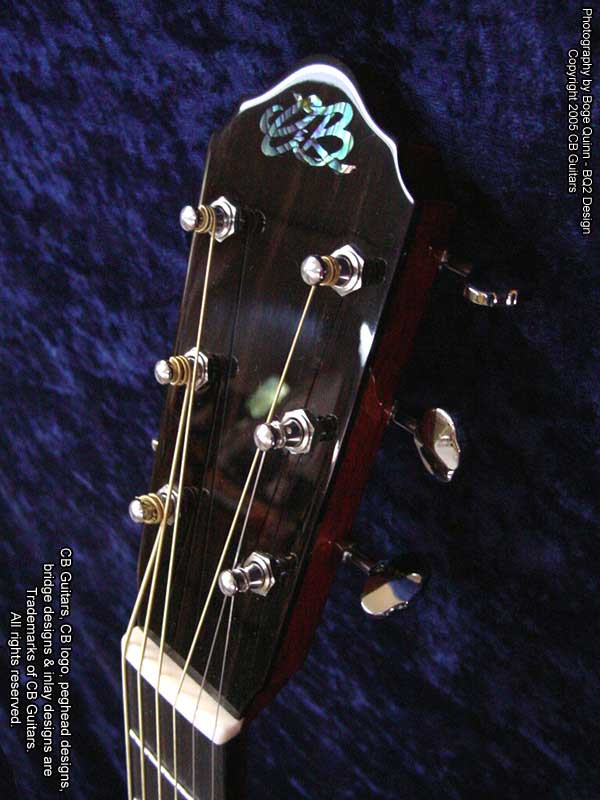

Front view of peghead
[Product Image]

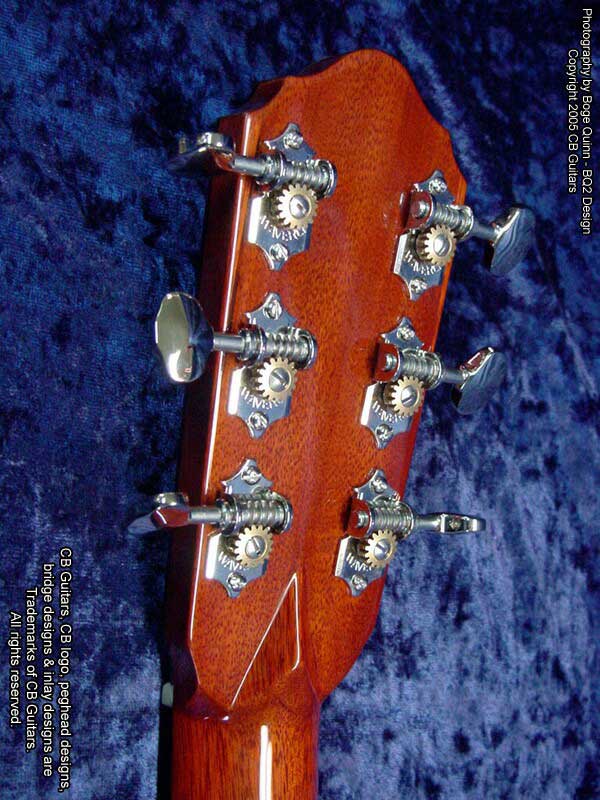

Rear view of peghead



[Product Image]

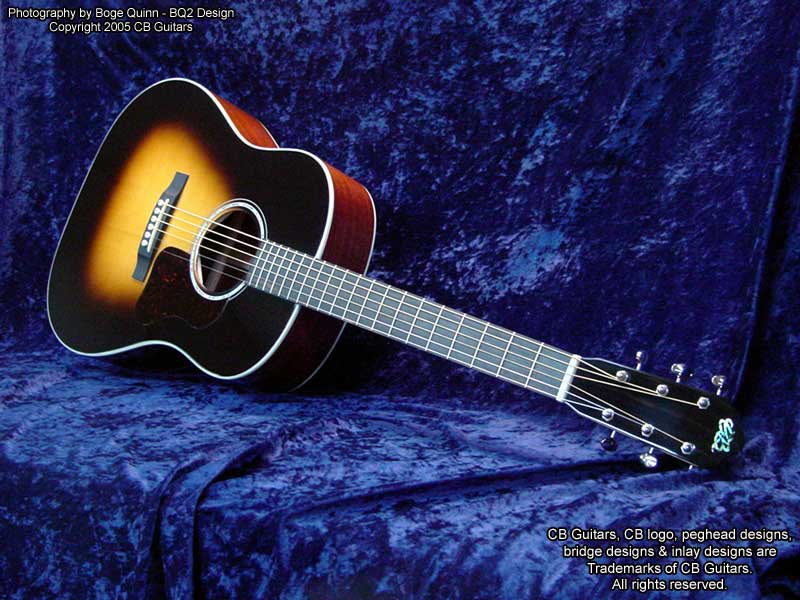

Full front view
[Product Image]
Full back view



Features (as shown):

See Price List and Options Page for additional options.

Top: Engelmann Spruce. Large (4-3/16") soundhole with abalone rosette and tortoise-grained pickguard.

Top Finish: 1930s-style Sunburst.

Top Binding: Multiple grained ivoroid.

Back & Sides: Figured Honduras Mahogany with "checkerboard" back strip.

Back Binding: Multiple grained ivoroid.

Neck: Honduras Mahogany with diamond volute, "Rose" inlay on heel cap.

Peghead: Chris' trademark "Vintage" peghead shape with Ebony overlay & abalone CB logo.

Tuning Machines: Nickel-plated Waverly machines with "butterbean" buttons.

Fretboard: Ebony with no inlays (side position markers only).

Bridge: Ebony with "drop-in" bone saddle and bone bridge pins.

Pickup System: K&K passive pickup.



CB Guitars Price List

All CB Instruments include a quality hard-shell case and are backed by a Limited Lifetime Warranty against defects in material and workmanship.





    Options

CB instruments are all truly custom-made instruments, made to order for the individual and completely hand-built one at a time by Chris Bozung. As such, your CB Instrument can be made to suit your desires. Please click the links below to see some of our more popular options.

Peghead Shape Options Peghead Inlay Options Fingerboard Inlay Options
Bridge Options Wood Options Finish Options
